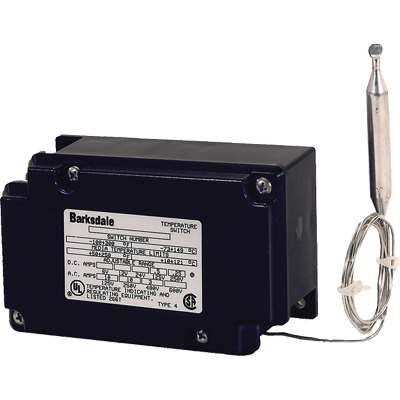

Barksdale Products TPR-L1N-3X-Q10 Temperature Switch -40 TO 160F

Barksdale Products TPR-L1N-3X-Q10 Temperature Switch -40 TO 160F
Images for general purposes only. Actual may be different than depicted.
Barksdale Products TPR-L1N-3X-Q10 Temperature Switch -40 TO 160F

Barksdale Products TPR-L1N-3X-Q10 Temperature Switch -40 TO 160F

SKU: TPR-L1N-3X-Q10
In Stock 2
Rating:
$164.47 /ea
0
$0.00
0
$0.00
0

Barksdale TPR Series Temperature Switch

Barksdale's TPR Series Temperature Switch adds flexibility to Barksdale's solid reputation for quality & reliability, and offers versatility for your temperature sensing needs. This switch is ideal for applications where freeze protection or lower temperature control is critical. The TPR is available in factory set and locked NEMA 4X configurations. The tin-plated sensor comes in 3 or 10 foot lengths. The TPR Series feature limit switches with 22 amps @ 125/250 VAC and 3 amps @ 480 VAC electrical ratings that allow thermostats to be used for higher current, heat tracing applications. The TPR Series is UL listed and CSA approved.

Features:

  • High Accuracy
  • NEMA 4X & IP 65
  • Compact, Economical Design
  • UL, CSA and CE Approved
  • Single Switch
Enclosure Polycarbonate plastic NEMA 4X
Limit Switch 22A @ 125/250/481V standard
Temperature Range (Fixed Setpoint Decreasing) 40F (4.4C)
Media Temperature Limit -40F to 160F (-40C to 71C)
Approximate Differential Temperature for Liquid 10F (5.6C)
Sensor 3ft Bulb & Capillary
Wetted Materials Tin plated copper sensor
Electrical Connection 1-1/8” (28mm) hole for 3/4” NPT conduit hub 12”, 14 AWG stranded copper wire
System Pressure 300 PSI Maximum without Thermowell
Approvals UL listed file E56247; CSA certified file LR 58658

Following are the Attached files for this product:

Barksdale TPR General Purpose Switch Data Sheet
