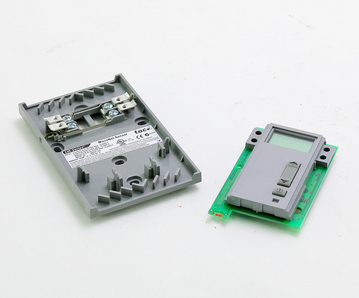

Barber Colman (Schneider Electric) MN-S3HT Temperature & Humidity Sensor with LCD & Override

Barber Colman (Schneider Electric) MN-S3HT Temperature & Humidity Sensor with LCD & Override
Images for general purposes only. Actual may be different than depicted.
Barber Colman (Schneider Electric) MN-S3HT Temperature & Humidity Sensor with LCD & Override

Barber Colman (Schneider Electric) MN-S3HT Temperature & Humidity Sensor with LCD & Override

SKU: MN-S3HT
Rating:
Quantity Price Stock
Stock Closeout - Call for Availability
Stock Closeout - Call for Availability
$867.59     /ea
Stock Closeout - Call for Availability
0
$0.00
0
$0.00
0
MN-S3HT
Barber Colman (Schneider Electric) MN-S3HT Temperature & Humidity Sensor with LCD & Override

The TAC I/A Series MicroNet™ Sensors (MN‑Sxxx series) are a family of digital wall temperature and humidity sensors for use with TAC I/A Series MicroNet controllers. These sensors feature a Sensor Link (S-Link) communication protocol which provides a simple two-wire interface for power and exchange of sensor and subbase information. Subbase information includes selecting occupancy override, fan speed, operating mode, or emergency heat.

Available in twelve models, MN-Sxxx series sensors provide an integral analog-to-digital conversion for elimination of sensor-to-controller noise effects and wire resistance offset.

Using the digital wall sensor, the operator can monitor performance and edit operational settings. MN-Sxxx series sensors are suitable for direct-wall, 2 x 4 electrical box, 1/4 DIN electrical box, or surface box mounting.

The MN-Sxxx series sensor measures room conditions and transmits the information to the controller via the S-Link. A single sensor is connected directly to an application specific TAC I/A Series MicroNet controller via low-cost, unshielded, twistedpair cable. The connection between the sensor and controller is not polarity-sensitive.

A convenient connection to either a MicroNet LonWorks® or MicroNet BACnet network is provided as an option with each sensor in the series. If the LonWorks network wiring is connected to the sensor, a PC running WorkPlace Tech Tool or a third party Network Management Tool can be connected to the network at the sensor. This feature allows convenient
access to the MicroNet LonWorks network.

FEATURES
• Contemporary, low-profile packaging.
• Digital zone temperature indication (selectable for 0.1 or 1 degree display resolution of °F or °C).
• Self-compensating temperature conversions remove the need to calibrate over time.
• Digital zone humidity indication (selectable for 0.1 or 1% RH display resolution).
• Long-life humidity sensing element with excellent resistance to contamination and condensation.
• Pushbutton override capabilities allow occupants to switch to timed occupied mode for after hours operation.
• Displays selected system values such as setpoints, outdoor air temperature, and operating mode.
• Provides the ability to change operating modes.
• Directly connects to selected TAC I/A Series MicroNet controllers via low-cost, unshielded, twisted-pair cable, which provides both power and communication.
• Separate wiring subbase and electronics.
• LonWorks network jack for convenient network access.
• S-Link jack for Pocket I/A access to the connected controller.
Operating Temperature 32 to 122 °F (0 to 50 °C).
Humidity 5 to 95% RH, non-condensing
Display Setpoints, input spans, and units vary with the controller application.
System Mode Heat/Cool/Off/Auto
Fan Mode Off/On/Speed (Low, Medium, High)/Auto.
