Barber Colman (Schneider Electric) MN-S3-500 Sensor with Adjustable Set Point & Override (No Cover)

Barber Colman (Schneider Electric) MN-S3-500 Sensor with Adjustable Set Point & Override (No Cover)
Images for general purposes only. Actual may be different than depicted.

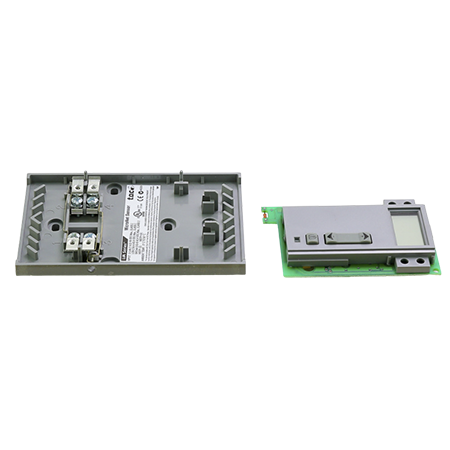

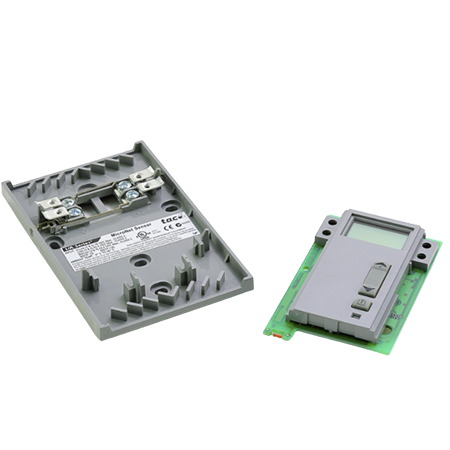

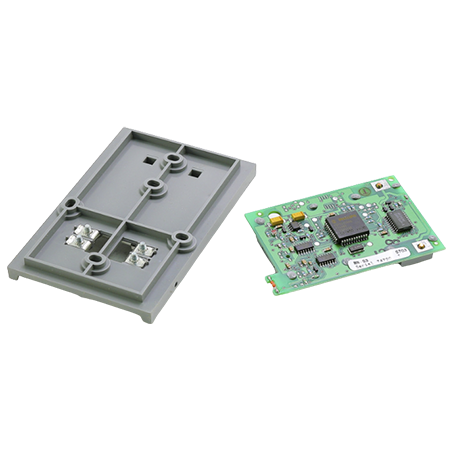

Barber Colman (Schneider Electric) MN-S3-500 Sensor with Adjustable Set Point & Override (No Cover) Barber Colman (Schneider Electric) MN-S3-500 Sensor Adjustable Setpoint and Override Barber Colman (Schneider Electric) MN-S3-500 Sensor Three Push Buttons

Barber Colman (Schneider Electric) MN-S3-500 Sensor with Adjustable Set Point & Override (No Cover)

SKU: MN-S3-500
Rating: (2)
Quantity Price Stock
87
Usually Ships 1 - 2 Weeks
$296.04     /ea
87
0
$0.00
0
$0.00
0
MN-S3-500
The MN-S3-500 is a temperature sensor that has a 32 to 122°F range, ±2% accuracy, and a 5 to 95% non-condensing humidity range.  It has a digital zone temperature indication which can be selected with °F or °C degree display.  UL-Listed, CSA-certified, and CE-marked.

The temperature sensor features a sensor with a setpoint adjustment and override function.  The unit can be adjusted through the three large push buttons.  It has a self-compensating temperature conversion minimizing the need for calibration.

The MN-S3-500 is easy to install and mounted into a direct wall, 2 x 4 electrical box, 1/4 DIN electrical box, or surface box.  The DCQC-150-SE sensor cover accessory is also available.
Approvals UL Listed, CSA certified, and CE marked
Number of Keypad Three Button
System Modes Heat/Cool/Off/Auto
Fan Modes Off/On/Speed (Low, Medium, High)/Auto
Type Precision Thermistor
Humidity Range 5 to 95% RH, non-condensing
Operating Temperature 32 to 122 °F (0 to 50 °C)
Temperature Range 32 to 122 °F (0 to 50 °C)
Accuracy ±2%
Maximum Hystereses ±1.2% RH

By David

from Clovis CA

Yes, I would recommend this product to a friend or co-worker

5.0 Works perfectly

Good product, works well with our EMS system


By Aaron

from

Yes, I would recommend this product to a friend or co-worker

4.0 Good service

Good product, but pricey.

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
Is the MN-S3-500 compatible with MNL-V2R VAV Box Controller?
Asked on Jun 22, 2020 by Cam from Alberta, Canada
1 Answers

Have an answer? Click Here

A:
On the Technical Data tab above, the literature for the MN-S series sensors can be viewed or downloaded as a PDF.  On page 4, of this document, referring to the set-up architecture, the MNL-V2R Vx Box Controller is shown as a compatible device.



Replied on Jun 23, 2020 by Ori from Industrial Stores

Q:
how do i calibrate a mn-s3 thermostat
Asked on Jan 31, 2019 by kudzai from harare
1 Answers

Have an answer? Click Here

A:
According to the literature available for the MN-S series (which is available for download under the technical data tab), these sensors have self-compensating temperature conversions which remove the need to calibrate them.
Replied on Jan 31, 2019 by Ron from Industrial Stores
