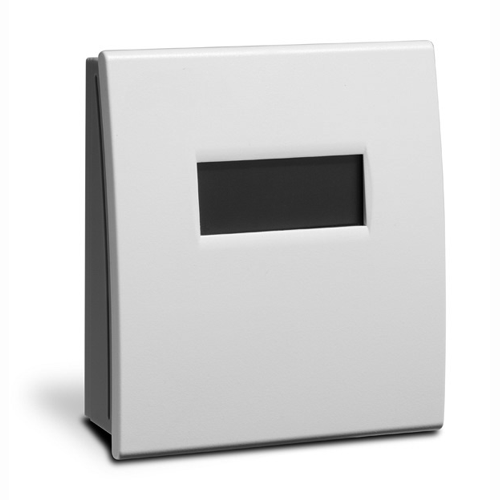

Siemens Building Technology QPA2000 Room Carbon Dioxide Sensor

Name: Siemens Building Technology QPA2000 Room Carbon Dioxide Sensor
Brand: Siemens Building
SKU: QPA2000
Price: 331.03 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Siemens Building Technology QPA2000 Room Carbon Dioxide Sensor

SKU: QPA2000

Brand:

Rating:

Quantity	Price	Stock
1 Ships 5-7 Days	$331.03 /ea	1

Buy in Bulk & Save

Quantity	Price
5+	$314.49 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Siemens QPA Series Room Carbon Dioxide Sensor

The QPA Series Room Carbon Dioxide Sensors monitor and transmit changes in CO2 to the building control systems. No calibration of the CO2 sensor is necessary — these microprocessor-based units consist of a nondispersive infrared CO2 sensor that experiences less than 1% drift per year for the first two years of operation and negligible drift thereafter. All variants for CO2 and combination versions with Temperature or VOC deliver 0 to 10 Volt or 0 to 5 Volt (field selectable) proportional signals to the controller. These units are especially suited for applications where precise, stable CO2 sensing is required.

Features:

LCD display option
Various models: CO2; CO2/VOC; CO2/Temp; CO2/Temp/RH
Built-in test function for troubleshooting
Jumper selectable °C/°F units for temp models w/display
No Logo versions available

Voltage Requirement	13.5 to 35 Vdc
Housing Protection Class	NEMA 1
Connections	Screw terminals
Installation	18 AWG cable length shared in conduit with other sensor wiring 750 ft. (229 m) maxAC/DC 24V + 20%; 50/60Hz; Maximum 1VA
CO2 Operating Range	0 - 2000 ppm
Accuracy at Room Temperature â‰ˆ 73Â°F (20Â°C)	+2% mV
Operating Temperature	-23 to +113Â°F (-5 to +45Â°C)
Temperature Effect	Less than 0.1% per degree C
Sensing Element	NDIR CO2 Sensing Modules
Output Signal	0 to 10 Vdc, 0-100% Linear, Proportional

Download Product Information:

Siemens QPA Room Carbon Dioxide Sensor Technical Datasheet
