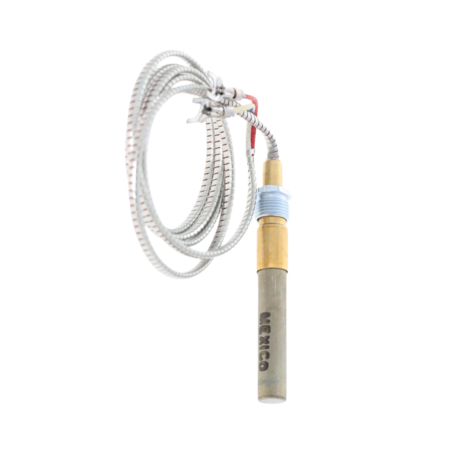

The Resideo Q313A1022 is a 35” thermopile generator with 750 mV open circuit output.
Inclusions:
The thermopile has multiple thermocouples connected in series to increase millivoltage output.
The Q313 is compatible with Q314, Q324, Q327, Q377, Q379, and Q382 pilot burners.
| Attaching Nut | 7/16" |
|---|---|
| Open Circuit Output | 750mV |
| Resistance | 2.89 Ohms |
| Lead Length | 35" (889 mm) |
| Temperature Rating (Hot Junction) | 760°C (1400°F) |
| Connection Type | Spade Terminals |
| Temperature Rating (Cold Junction) | 416°C (780°F) |
