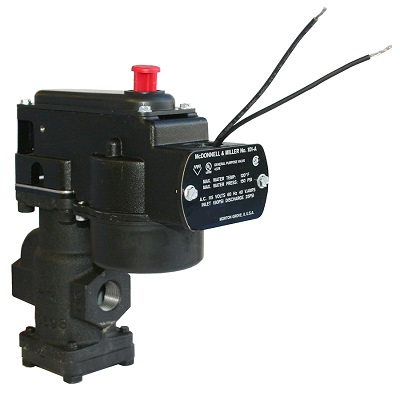

The Series 101A Water Feeder is ideal for use in residential or small commercial applications. They are versatile in that they are compact and they are easily installed to operate with either a probe type OR a
float type low water cut-off. These feeders are always ready to add water when given the signal from the low water cut-off. The benefits they offer are the convenience of not having to manually add water – and most importantly – they will protect the boiler from a dry fire condition by maintaining a safe minimum water level in the boiler should a system leak occur.


If you use a mechanical automatic water feeder, you can keep your burner operating even during a power failure.

Features

• For low pressure steam boilers with cold water feed
• Eliminates necessity to manually add water to the boiler
• Can be used with mechanical or electronic low water cut-off controls
• Quick-change replaceable cartridge valve and strainer
• Manual feed button
• Model 101-A features a 120 VAC solenoid
• Model 101-A-24 features a 24 VAC solenoid and a separate 50VA transformer
• Maximum water supply pressure 150 psi (10.5 kg/cm2)
• Maximum boiler pressure 25 psi (1.8 kg/cm2)
• Maximum inlet water temperature 120°F (49°C)
• Maximum power consumption
  • – 40 VA at 24 VAC
  • – 40 VA at 120 VAC
