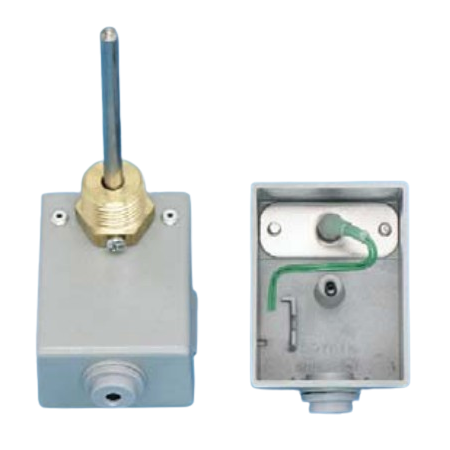

The TE-703-B-12-B-1 is an immersion temperature sensor that has a 10,000 Ohm NTC thermistor (type II) sensing element. It has a 1/8" NPT adapter, 6" probe length with a polycarbonate plastic enclosure that provides excellent performance. CE-marked and RoHS-compliant.

The immersion temperature sensor is suitable for hot or chilled water, condenser water, and low-pressure steam applications. The unit is used to measure the fluid temperature with a 304 stainless steel probe crimp attached to the enclosure.

The TE-703-B-12-B-1 is constructed with a single screw cover attachment and a patented locking thermowell adapter that allows quick & easy installation.

Probe Length	6"
Adapter Size	1/8" NPT
Sensor Type	10,000-Ohm NTC Thermistor (Type II)
Ambient Temperature	-40°F to 160°F (-40°C to 70°C)
Operating Temperature	-40°F to 210°F (-40°C to 100°C)
Enclosure Material	Polycarbonate 30% glass filled
Flanged Material	Galvanized Steel
Probe Material	304 Stainless Stee
Bulkhead Fitting	Brass with poly compression sleeve
Approvals	CE-marked and RoHS compliant

Download Product Information:

Mamac TE-703-B-12-B-1 Immersion Temperature Sensor Technical Datasheet

Mamac TE-703-B-12-B-1 Immersion Temperature Sensor Catalog
