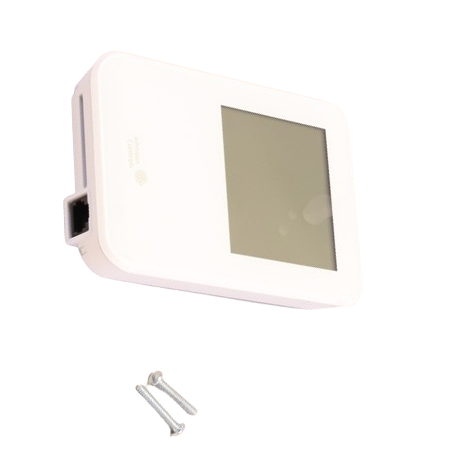

Johnson Controls NSB8BPN240-0 Temperature/Humidity Sensor with Display/Logo

Name: Johnson Controls NSB8BPN240-0 Temperature/Humidity Sensor with Display/Logo
Brand: Johnson Controls
SKU: NSB8BPN240-0
Price: 607.70 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Johnson Controls NSB8BPN240-0 Temperature/Humidity Sensor with Display/Logo

SKU: NSB8BPN240-0

Brand:

Rating:

Quantity	Price	Stock
11 Usually Ships 2 - 3 Weeks	$607.70 /ea	11

Add to Cart

Add to Wishlist

The NSB8BPN240-0 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Johnson Controls NS-BPB7002-0 Zonesensortemp&Hum Lcd Display	NS-BPB7002-0 Brand Johnson Controls

Add to Cart

Add to Wishlist

The NSB8BPN240-0 is a temperature and humidity sensor that has a Johnson Controls logo. It features a large LCD display that provides real-time environmental status with a backlight during interaction. Users can toggle between degrees Fahrenheit(F) and Celsius(C). It also includes a screen lockout feature to prevent tampering.

The NS series network sensor is ideal for monitoring and controlling environmental conditions, sending data to a controller via the Sensor/Actuator (SA) bus. With additional SA bus access ports, users can connect accessories to service, commission, or access other controllers on the same field controller (FC) bus.

Features:

BACnet MS/TP protocol communication
Single and multifunctional sensors
Onboard occupancy sensor available on PIR models
Field-selectable default display setting
Fahrenheit/Celsius (°F/°C) selectable
Includes a screen lockout

The NSB8BPN240-0 is easy to install with surface or vertical wall box mounting, making it suitable for various settings and applications. Its graphical display also offers customizable light or dark themes and a sleep mode that dims or turns off the screen. This replaces part number NS-BPB7002-0 Zone Sensor.

Mounting	Surface Mount or Vertical Wallbox-Mount
CO2 Sensor Operation Range	32°F to 122°F (0°C to 50°C)
CO2 Measurement Range	0 ppm - 2000 ppm
Humidity Sensor Type	Thin film capacitive sensor
Temperature sensor type	Digital temperature sensor
Terminations	Modular jack and screw terminal block
Supply voltage	9.8 VDC to 16.5 VDC; 15 VDC nominal (from SA bus)
Ambient Operating Condition	32°F to 122°F (0°C to 50°C); 10% to 90% RH, noncondensing; 85°F (29°C) maximum dew point
Temperature resolution	±0.5°F/±0.5°C
Approvals	CE-mark, RoHS2, RCM-mark, UL Listed, FCC Compliant

Download Product Information:

Johnson Controls NS8000 Series Network Sensors Product Datasheet

Johnson Controls NS8000 Series Network Sensors Installation Instructions

Johnson Controls NS8000 Series Network Sensors Catalog Page
