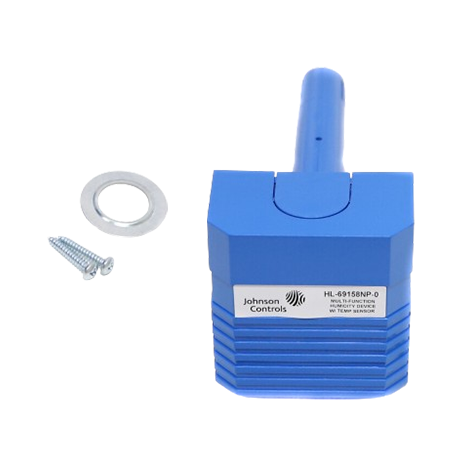

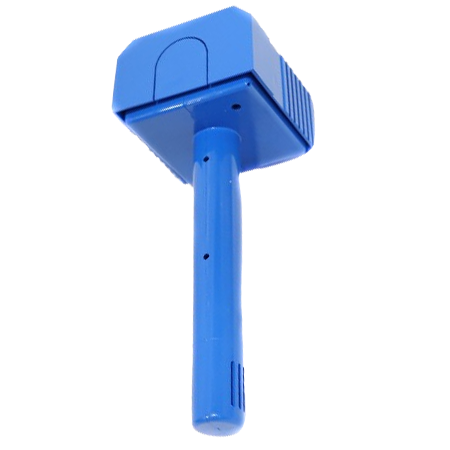

The HL-69158NP-0 is a multi-function humidity device with a temperature sensor that operates with 0 VDC to 10 VDC or 0 mA to 20 mA output.  It features a thin-film nickel material sensor that provides a 1K ohm resistance at 70°F (21°C).

The multi-function humidity device is designed to manage duct humidity by functioning as a high-limit or proportional override controller, a stand-alone proportional controller, or a stand-alone two-position controller.  It accurately adjusts output to humidification equipment, reducing condensation as duct humidity approaches a user-defined setpoint.  The temperature sensor also operates independently of the humidity control function.

Features:

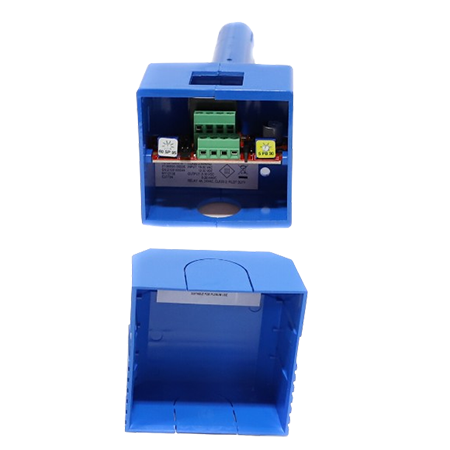

The HL-69158NP-0 is easy to install with its all-plastic enclosure, which reduces thermal biasing, lowers energy consumption, and prevents condensation without needing additional thermal compensation.  This replaces part number HL-67N5-8N00P Multi-Function Humidity Device with Temperature Sensor.
