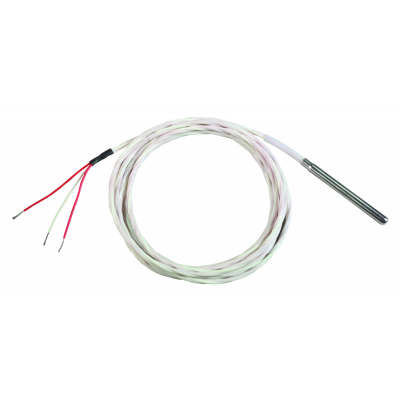

Honeywell T775-SENS-WT is a PT1000 Water-tight Temperature Sensor with 6 ft leads. The sensor is especially used for HVAC, agricultural, and industrial applications which can monitor discharge air, mixed air temperatures, and return air. It is used together with the T775 Series 2000 electronic controller. Model T775-SENS-WT provides high accuracy and fast response time.
|Operating Temperature Range||-40 C to 132 C (-40 F to 270 F)|
|Sensor||PT1000, 1097 ohms @ 77 F PTC|
|Sensor Output||1 K Ohms at 32 F (0 C)|
|Applied Current||1.0 mA Max|
Following are the Attached files for this product:
