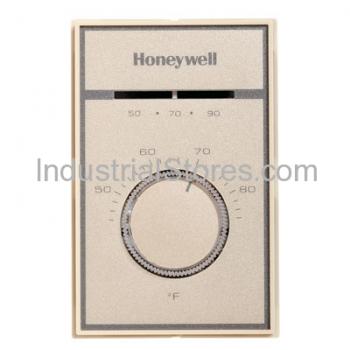

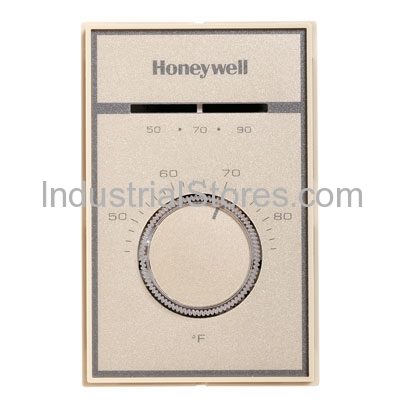

Overview Light and Medium Duty Line Voltage Thermostats control line voltage valves motors contractors electric heat elements duct furnaces and fan coil units in heating/cooling systems. Features Automatic cooling and heating anticipation. Mount on standard vertical or horizontal outlet box. Product Specifications Hazmat InformationUN 2037 Butane (Receptacles small containing gas cartridges) 2.1 LTD. QTY one Fiberboard box X 1kgApplicationHeating and cooling CelsiusDimensions (in.)4 1/2 in. high x 2 15/16 in. wide x 1 1/2 in. deep (switches and wiring terminals protrude into outlet box 3/4 in.)Dimensions (mm)115 mm high x 75 mm wide x 39 mm deep (switches and wiring terminals protrude into outlet box 19 mm)IncludesVertical scaleplate with thermometer range stops and locking screws wall plate high accuracy Dual Diaphragm sensor.Electrical Ratings9.8 FLA / 58.8 LRA @ 120 Vac 5.6 FLA / 33.6 LRA @ 208 Vac 4.9 FLA / 29.4 LRA @240 Vac 4.2 FLA / 25.2 LRA @277 Vac 22 A @ 120 - 240 Vac Resistive 19 A @ 277 Vac Resistive.Frequency50 Hz 60 HzApprovals Underwriters Laboratories Inc.Listed: File No. E4436 Guide No. XAPX Guide No. XAPX.Approvals Canadian Standards AssociationCSA Certified File No. LR1322Electrical ConnectionsFlyleadSupply Voltage120 to 227 VacSwitch Positions (System)heating and coolingSensor ElementVapor filled dual diaphragmDifferential Temperature (C)1 CColorChampagne gold face-plate with beige coverSwitching ActionSPDT - breaks heating and makes cooling on temperature riseSetting Temperature Range (C)7 C to 28 C
