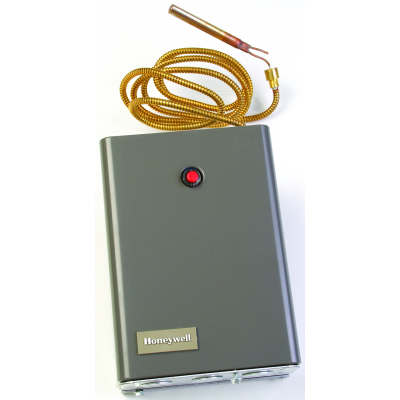

Honeywell R8182D1079 Multifunction Gas Aquastat

Honeywell R8182D1079 Multifunction Gas Aquastat
Images for general purposes only. Actual may be different than depicted.

Honeywell R8182D1079 Multifunction Gas Aquastat

SKU: R8182D1079
In Stock 6
Rating:
$655.59 /ea
0
$0.00
0
$0.00
0
Honeywell R8182D1079 Multifunction Gas Aquastat

Immersion type Aquastat controller and oil burner primary control provides high limit and low limit/circulator control for oil-fired hydronic heating systems.

Features:
  • Use in intermittent ignition applications.
  • Capable of zone control with zone valves.
  • Circulator zone control with ZC and ZR terminals on R8182D,E,H,J. 8*Flame failure during the running cycle results in a 45 second attempt to restart.
  • If unsuccessful, safety shutoff occurs, requiring manual reset before burner can be restarted.
  • R8182D,E,F mount directly on burner; R8182H,J mount on 4 x 4 in. junction box and include 5 ft (1.5 m) armored capillary with remote sensor.
  • C554A Cadmium Sulfide Flame Detector and a 24 Vac thermostat required.

Honeywell R8182D1079 Multifunction Gas Aquastat Specifications

Power Consumption 9 W
Voltage 120 Vac
Operating Temperature Range High Limit-- 54 C to 116 C; Low Limit-- 43 C to 104 C
Electrical Ratings, Ignition 360 VA
Electrical Ratings, Burner At Full Load-- 4.4 A @ 120 Vac; At Locked Rotor-- 26.4 A @ 120 Vac
