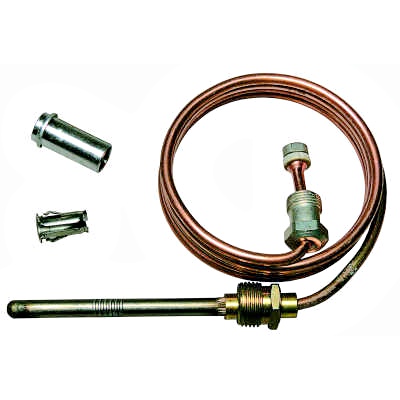

Images for general purposes only. Actual may be different than depicted.

Honeywell Q390A1103 30MV Thermocouple 48" long

SKU: Q390A1103
In Stock 191
$7.02 /ea
The Q390A thermocouples sense the pilot flame on standing pilot gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate 30 millivolts.  48 inch Thermocouple provides 30 mV output.

Features: Push-in clip, split nut, or adapter assembly available (depending on model) for easy pilot burner installation. Male nut connector for Pilotstat® safety control power units. Available in a variety of lead lengths.

Honeywell Q390A1103 30MV Thermocouple 48" long Specifications

Temperature Ratings Hot Junction--760 C; Cold Junction--416 C
Voltage 30 mV; Open circuit output--26 mV to 32 mV
Connection Type 11/32 32 Male Connector Nut
Resistance 0.03 ohms

Following are the Attached files for this product:

Honeywell Q390A1103 Thermocouple Datasheet
