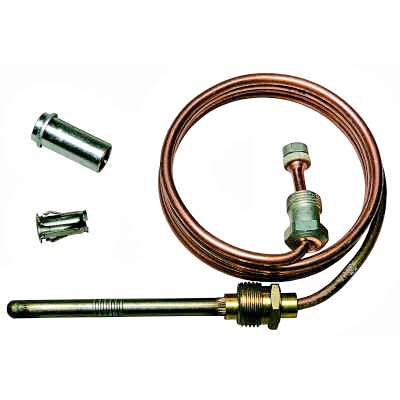

Honeywell Q390A1053 30MV Thermocouple 30" long

Honeywell Q390A1053 30MV Thermocouple 30" long
Images for general purposes only. Actual may be different than depicted.
Honeywell Q390A1053 30MV Thermocouple 30" long

Honeywell Q390A1053 30MV Thermocouple 30" long

SKU: Q390A1053
In Stock 237
Rating:
$5.96 /ea
0
$0.00
0
$0.00
0
The Q390A thermocouples sense the pilot flame on standing pilot gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate 30 millivolts. 30 inch Thermocouple provides 30 mV output.

Features: Push-in clip, split nut, or adapter assembly available (depending on model) for easy pilot burner installation Male nut connector for Pilotstat® safety control power units. Available in a variety of lead lengths.

Honeywell Q390A1053 30MV Thermocouple 30" long Specifications

Temperature Ratings Hot Junction--760 C; Cold Junction--416 C
Voltage 30 mV; Open circuit output--26 mV to 32 mV
Connection Type 11/32 32 Male Connector Nut
Resistance 0.02 ohms

Following are the Attached files for this product:

Honeywell Q390A1053 Thermocouple Datasheet
