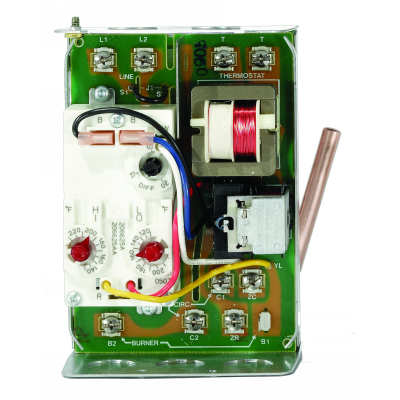

Honeywell L8124L1011 Multifunction Gas Aquastat

Name: Honeywell L8124L1011 Multifunction Gas Aquastat
Brand: Honeywell Resideo
SKU: L8124L1011
Price: 420.92 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell L8124L1011 Multifunction Gas Aquastat

SKU: L8124L1011

Brand:

Rating:

Quantity	Price	Stock
15 Usually Ships 1-2 Weeks	$420.92 /ea	15

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell L8124L1011 Multifunction Gas Aquastat

Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service.

Features:

Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems.
Provide multizone control by using a separate circulator and R845 Relay for each zone.
Include diaphragm powerhead and Micro Switch™ assembly that respond to temperature changes in boiler water.
Mount directly to boiler.
Select models include large transformers and extra terminals for supplying power to low voltage zone valves.
Require 24 Vac thermostat with heat anticipator set at 0.2 A (plus current draw of gas valve on L8124E).
TRADELINE models include tube of heat conductive compound and range stops.

Application	Triple Aquastat Relay with High limit
Maximum Safe Operating Pressure (psi)	200 psi on outside of immersion well, 100 psi on capsule if inserted directly.
Frequency	60 Hz
Voltage	24 Vac; 120 Vac
Electrical Ratings, Circulator	At Full Load-- 7.4 A @ 120 Vac: 3.7 A @ 240 Vac; At Locked Rotor-- 44.4 A @ 120 Vac: 22.2 A @ 240 Vac

Download Product Information:

Honeywell L8124L1011 Multifunction Gas Aquastat Data Sheet

Honeywell L8124L1011 Multifunction Gas Aquastat Installation Instructions
