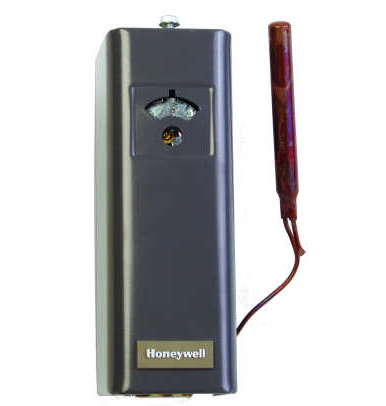

Honeywell L6006A1145 Single Function Aquastat SPDT 100-240F 5-30F Fixed Differential

Honeywell L6006A1145 Single Function Aquastat SPDT 100-240F 5-30F Fixed Differential
Images for general purposes only. Actual may be different than depicted.
Honeywell L6006A1145 Single Function Aquastat SPDT 100-240F 5-30F Fixed Differential

Honeywell L6006A1145 Single Function Aquastat SPDT 100-240F 5-30F Fixed Differential

SKU: L6006A1145
In Stock 212
Rating:
$128.55 /ea
Qty of 5 - $124.54 /ea
Qty of 10 - $120.53 /ea
0
$0.00
0
$0.00
0

Honeywell L6006A1145 Single Function Aquastat SPDT 100-240F 5-30F Fixed Differential

Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required.

Features:

  • Totally enclosed Micro Switch™ snap-acting switches operate on temperature rise to set point.
  • Visible control point scale and external adjustment screw permit easy setting.
  • Horizontal or vertical insertion of the sensing element.
  • Direct, well immersion, or surface mounting of the sensing element available.
  • Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
  • Direct or well immersion Tradeline models include heat-conductive compound.
  • Select models have wells.
Application Circulator Control and High Limit or Low Limit
Temperature Range Maximum Ambient--66 C (Maximum Ambient--150 F)
Includes Stop factory-set at 240 F (116 C); Heat-conductive compound
Switching Action SPDT
Electrical Ratings Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac

Following are the Attached files for this product:

Honeywell L6006A1145 Single Function Aquastat SPDT Installation Instructions
