Honeywell L4006A1967 Single Function Aquastat SPST Breaks on Rise 100-240F 5-30F Fixed Differential

Honeywell L4006A1967 Single Function Aquastat SPST Breaks on Rise 100-240F 5-30F Fixed Differential

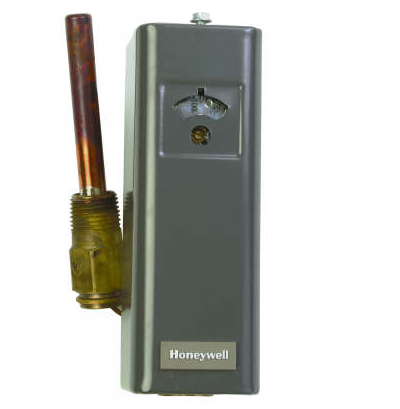

Images for general purposes only. Actual may be different than depicted.
Honeywell L4006A1967 Single Function Aquastat SPST Breaks on Rise 100-240F 5-30F Fixed Differential

Honeywell L4006A1967 Single Function Aquastat SPST Breaks on Rise 100-240F 5-30F Fixed Differential

SKU: L4006A1967
In Stock 134
Rating:
$128.97 /ea
Qty of 5 - $124.95 /ea
Qty of 10 - $120.92 /ea
0
$0.00
0
$0.00
0

Honeywell L4006A1967 Single Function Aquastat SPST Breaks on Rise 100-240F 5-30F Fixed Differential

Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. Honeywell's L4006 are used in applications that utilize the existing wells

Features:

  • Totally enclosed Micro Switch™ snap-acting switches operate on temperature rise to setpoint.
  • Visible control point scale and external adjustment screw permit easy setting.
  • Horizontal or vertical insertion of the sensing element.
  • Direct or well immersion of the sensing element.
  • Models available for strap-on mounting.
  • Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
  • TRADELINE models include heat-conductive compound.
  • Select models have wells.
  • UL limit rated device.
Application High or Low limit
Includes 1/2 in. well - 123869A; Stop factory-set at 240 F (116 C)
Operating Temperature Range 38 C to 116 C (100 F to 240 F)
Switching Action SPST, contacts break on temperature rise.
Electrical Ratings Millivolt--0.25 A @ 0.25 to 12 Vdc; At Full Load-- 8A @ 120 Vac: 5.1A @ 240 Vac; At Locked Rotor-- 48A @ 120 Vac: 30.6A @ 240 Vac
