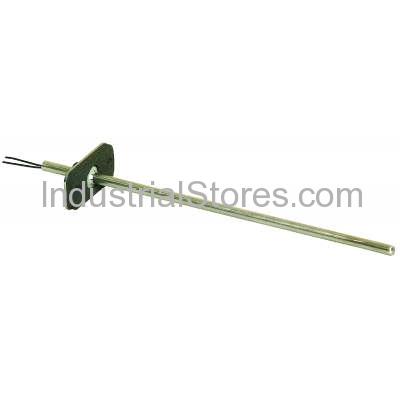

3K ohm Duct Temperature Sensor, 8 in. insertion, Operating range 40-150F.
Overview
Air Temperature Sensors function as primary and/or secondary sensors in electronic control systems.
Features
No settings or calibration required.
Solid state components not affected by dust or dirt.
Fast reacting.
Rugged aluminum insertion probe.
Mounts on duct or plenum surface with integral mounting flange, or in a 2 x 4 in. junction box.
Product Specifications
Application
Primary and/or secondary sensors in electronic control systems
Dimensions (in.)
1 in. high x 2 in. wide x 9 in. deep
Dimensions (mm)
25 mm high x 51 mm wide x 229 mm deep
Includes
6 in. leadwires
Used With
W973, W6210, W6215, W7210, W7215, W7459, W7460
Comments
Quick response time. Sensor probe diameter is 1/4 in. (6 mm). 6 in. leadwires.
Item Type
Product
Mounting
Mounts on flat duct or plenum surface with integral mounting flange or in a 2 in. x 4 in. (51 mm x 102 mm) junction box.
Sensor
3K ohm @ 77 F NTC
Operating Temperature Range (F)
40 F to 150 F
Operating Temperature Range (C)
4 C to 66 C
Shipping and Storage Temperature Range (F)
-30 F to +160 F
Shipping and Storage Temperature Range (C)
-34 C to +71 C
Insertion Length (in.)
8 in.
Insertion Length (mm)
203 mm
Ambient Temperature Range (F)
250 F Maximum
Ambient Temperature Range (C)
121 C Maximum
