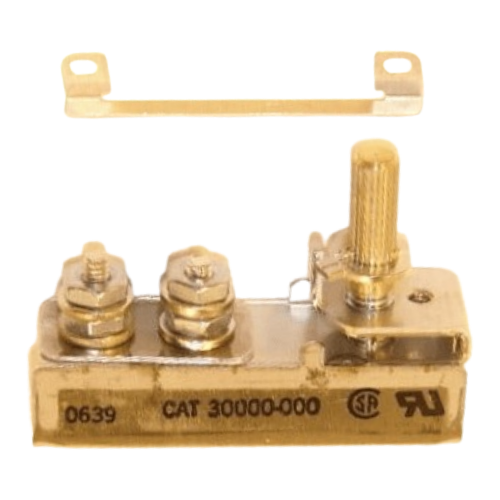

Fenwal Series 30000 Surface Mounting THERMOSWITCH® controllers operate on the principal of differential expansion of metals. A temperature increase causes the stainless steel outer case to expand at a greater rate than the internal bridge assembly. Because the case is in direct contact with the heated surface, a temperature change is sensed almost instantaneously. With an increase in temperature, the case expands. This results in a linear change of the internal bridge assembly causing the electrical contacts to open. A decrease in temperature closes the contacts. This is a field tried and time tested quality product in the Fenwal tradition.

FEATURES

• Fully adjustable

• Overlapping ranges from 50° F to 600° F

• 1200 Watt resistive load rating at 120VAC/240VAC

• Narrow temperature differential

• UL component recognized

• CSA Certified • Economical

• Compact size

APPLICATIONS

• Vending Machines

• Platens

• Plastic Laminating Presses

• Dental Equipment

• Popcorn Machines

• Hot Stamp

• Food Warming Trays

• Pressure Washers
