Fenwal Temperature Controllers

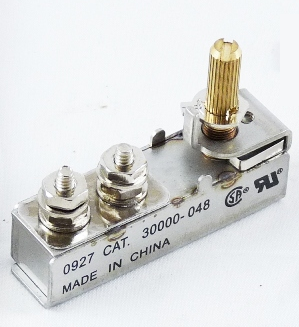

Fenwal Series 30000 Surface Mounting THERMOSWITCH® controllers operate on the principal of differential expansion of metals. A temperature increase causes the stainless steel outer case to expand at a greater rate than the internal bridge assembly. Because the case is in direct contact with the heated surface, a temperature change is sensed almost instantaneously. With an increase in temperature, the case expands. This results in a linear change of the internal bridge assembly causing the electrical contacts to open. A decrease in temperature closes the contacts. This is a field tried and time tested quality product in the Fenwal tradition.

Features:

• Fully adjustable
• Overlapping ranges from 50° F to 600° F
• 1200 Watt resistive load rating at 120VAC/240VAC
• Narrow temperature differential
• UL component recognized
• CSA Certified • Economical
• Compact size

Applications:

• Vending Machines
• Platens
• Plastic Laminating Presses
• Dental Equipment
• Popcorn Machines
• Hot Stamp
• Food Warming Trays
• Pressure Washers
