Danfoss 084Z8066 Temperature Sensor 2" 330F

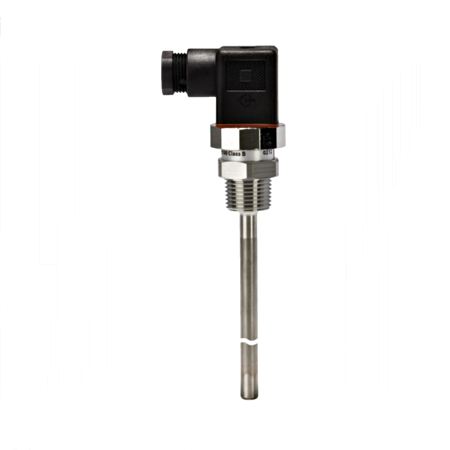

Danfoss 084Z8066 Temperature Sensor  2" 330F
Images for general purposes only. Actual may be different than depicted.
Danfoss 084Z8066 Temperature Sensor  2" 330F

Danfoss 084Z8066 Temperature Sensor 2" 330F

SKU: 084Z8066
Stock Closeout - Call for Availability
Rating:
$137.44 /ea
0
$0.00
0
$0.00
0
Danfoss MBT 5250 Temperature Sensor

The MBT 5250 is a heavy-duty temperature sensor that can be used for controlling cooling water, lubrication oil, hydraulic oil and refrigeration plants within general industry and marine applications. This temperature sensor is based on a standardized Pt100 or Pt1000 element, which gives a reliable and accurate measurement. The MBT 5250 can be delivered with NTC/PTC elements on request. The measuring insert is based on a silicone cable, which makes the sensor very resistant towards vibrations. All parts in contact with the media are made of stainless steel AISI 316 Ti. The MBT 5250 is equipped with EN 175301-803-A

Features:
  • For gaseous or liquid media, e.g. air, gas, vapour, water or oil
  • Up to +200°C media temperatures
  • Pt100 or Pt1000 resistance element
  • Can be used with 2- or 3-wire connections
  • Gold plated male and female connector
  • Interchangeable measuring insert
  • Available with all relevant marine approvals
Connection Standard ANSI/ASME B1.20
Temperature Range -50 - 200 °C (-58 - 392 °F)
Insert Length 1.97 (50mm)
Enclosure rating IP65
Sensor Element Standard EN 60751

Following are the Attached files for this product:

Danfoss MBT Series Temperature Sensor Datasheet
