Danfoss 084Z5248 50/800C Type K Temperature Sensor

Danfoss 084Z5248 50/800C Type K Temperature Sensor

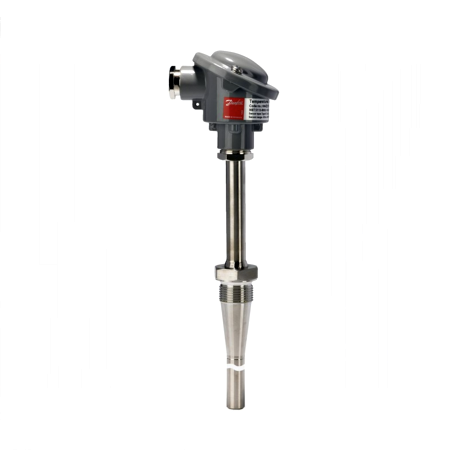

Images for general purposes only. Actual may be different than depicted.
Danfoss 084Z5248 50/800C Type K Temperature Sensor

Danfoss 084Z5248 50/800C Type K Temperature Sensor

SKU: 084Z5248
Usually Ships 1 Week
Rating:
$474.54 /ea
0
$0.00
0
$0.00
0
The MBT 5113 is a heavy-duty temperature sensor that can be used for measuring and regulating exhaust gas from diesel engines, turbines and compressors within stationary and marine applications. This temperature sensor is based on a type K thermo couple, which measures temperatures up to 800 °C. The measuring insert can be changed even while operating the application. All parts in contact with the media are made of stainless steel AISI 316 Ti. The sensor is delivered with B-head as standard and, if needed, a transmitter (MBT 9110) can be ordered as an integrated part of the sensor. With thermocouple up to 800° C media temperature. Available with built-in transmitter - with or without Eex ia IIC T4/T6 approval. Available with all relevant marine approvals.
Temperature Range -50 - 800 °C (-58 - 1472 °F)
Insertion Length 7.87 in (200 mm)
Extension Length 1.97 in (50 mm)
Ambient Temperature Range 90 °C (194 °F)

Following are the Attached files for this product:

Danfoss MBT5113 Exhaust Gas Temperature Sensors Datasheet
