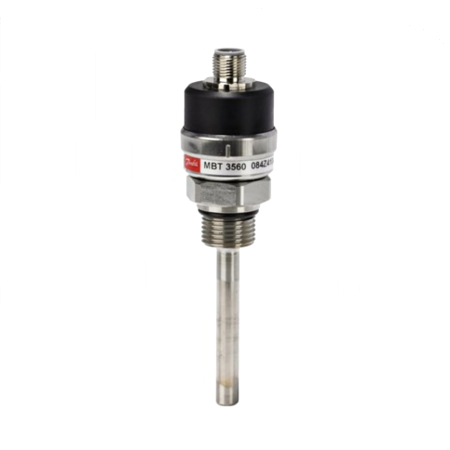

Danfoss 084Z4105 Temperature Sensor

Danfoss 084Z4105 Temperature Sensor
Images for general purposes only. Actual may be different than depicted.
Danfoss 084Z4105 Temperature Sensor

Danfoss 084Z4105 Temperature Sensor

SKU: 084Z4105
Usually Ships 1 Week
Rating:
$280.58 /ea
0
$0.00
0
$0.00
0
The MBT 3560 is designed for use in harsh industrial enviroments where reliable, robust and accurate equipment is required. Available with a wide selection of process and electrical connections. Can be delivered with a 33 mm extension length which makes it possible to measure temperatures up to 200 °C without damaging the built-in electronics.

Features: Designed for use in harsh industrial environments where reliable, robust and accurate equipment is required. All metal enclosure parts made of stainless steel (AISI 316). Output signals: 4 – 20 mA or Ratiometric 10 – 90%. A wide selection of process and electrical connections. Ultra compact design. Temperature range -50 – 200 °C. Sensor pockets available for applications where emptying the system is not an option. Based on Pt 1000 technology.
Enclosure Rating IP67
Insert Length 2.68 in (68 mm)
Process Connection Size 3/4-16
Sensor Element Resistance 1.000 Ohm
Supply Voltage 9.00 - 30.00 V
Temperature Range -50 - 120 °C (-58 - 248 °F)
Transmitter Setting Range -40 - 150 °C (-40 - 302 °F)
