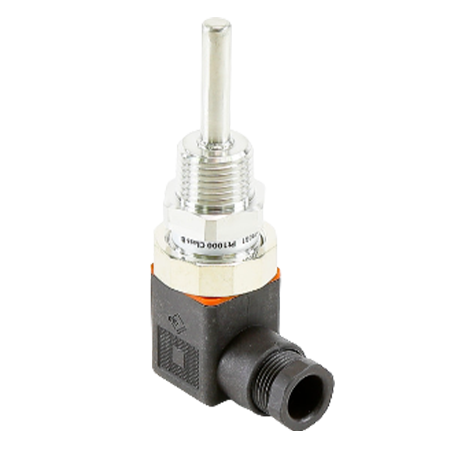

Danfoss 084Z3031 MBT5250 Temperature Sensor

Name: Danfoss 084Z3031 MBT5250 Temperature Sensor
Brand: Danfoss
SKU: 084Z3031
Price: 263.25 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Danfoss 084Z3031 MBT5250 Temperature Sensor

SKU: 084Z3031

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$263.25 /ea	Usually Ships 2 - 4 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The 084Z3031 (MBT5250) is a temperature sensor that has a 1/2-14" NPT process connection size made of stainless steel. It has a -58°F to 392°F (-50°C to 200°C) measuring temperature range with 257°F (125°C) maximum ambient temperature.

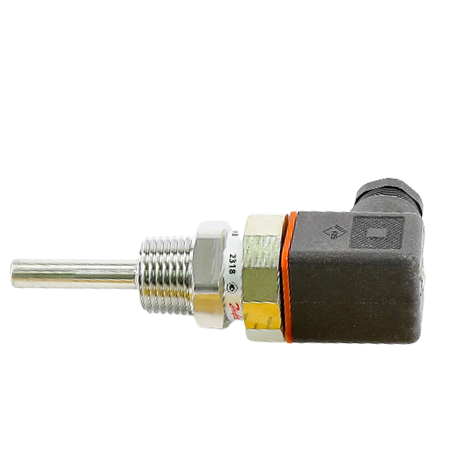

The temperature sensor is suitable for heating, marine, and industrial applications such as regulating cooling water, lubrication oil, hydraulic oil, and refrigeration plants. The unit features a Pt 1000 sensor element that provides precise temperature measurement.

The 084Z3031 is easy to install with an IP65 enclosure rating for added protection and an interchangeable measuring insert for quick maintenance.

Enclosure Rating	IP65
Sensor Element Resistance	1000 Ohm
Process Connection	1/2-14" NPT
Reaction Time in Water	9 seconds
Maximum Ambient Temperature	257°F (125°C)
Process Connection Material	Stainless Steel
Temperature Range	-58°F to 392°F (-50°C to 200°C)

Download Product Information:

Danfoss 084Z3031 (MBT5250) Temperature Sensor Technical Datasheet

Danfoss 084Z3031 (MBT5250) Temperature Sensor Catalog

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

I am being asked for the PT100 version of this item. Under part number 084z3031 its says you can get PT100 OR PT1000. How do I get PT100?

Asked on September 20, 2018 by CHEMAINE from KETCHIKAN ALASKA

1 Answers

Have an answer? Click Here

The 084Z3031 is indeed a PT1000 so it is not the one you would want. There are several PT100 versions in this series, however they vary slightly from the 084Z3031, so you will need to know the specs that you are looking for, or that may work in your application.
The 084Z3031 is 1.97" insertion length and has a connection size of 1/2"-14 NPT

Here are the PT100 versions that most closely resemble the specs of the 084Z3031:
084Z8011 1.97" insertion length and has a connection size of 1/2"
084Z8019 3.15" insertion length and has a connection size of 1/2"-14 NPT

So if you know the insertion length and connection size we can narrow it down if neither of these will work for you.

Replied on September 21, 2018 by Ron from Industrial Stores
