Danfoss 080Z2187 Zone Temperature Sensor

Danfoss 080Z2187 Zone Temperature Sensor
Images for general purposes only. Actual may be different than depicted.
Danfoss 080Z2187 Zone Temperature Sensor Danfoss 080Z2187 Zone Temperature Sensor

Danfoss 080Z2187 Zone Temperature Sensor

SKU: 080Z2187
Rating:
Quantity Price Stock
5
5
$86.46     /ea
5
0
$0.00
0
$0.00
0
080Z2187

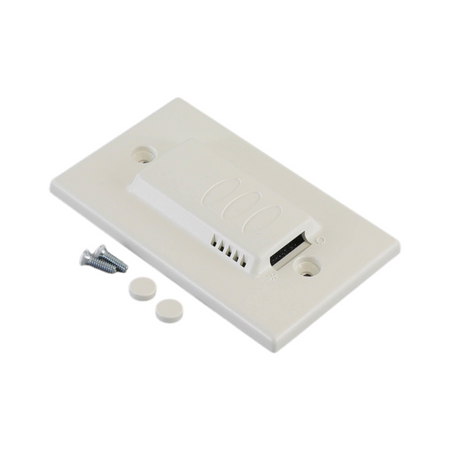

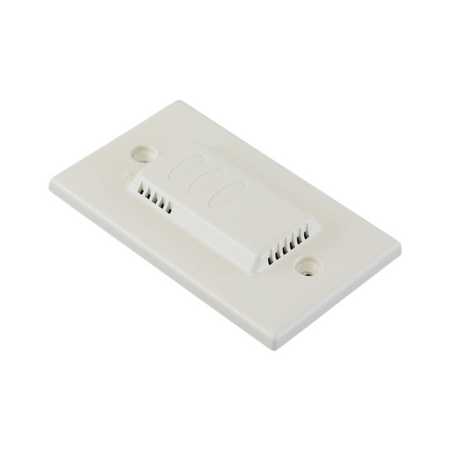

The Danfoss 080Z2187 is an ESMR zone temperature sensor with plastic housing for multi-directional airflow.  This sensor has a temperature ranging from -40°F to 122°F.

The zone temperature sensor monitors the ambient temperature and controls HVAC/R devices for the area.  It is commonly attached to interior walls or sales floor columns.

The 080Z2187 is a direct replacement for the old model number ZTP2.  Compatible with Danfoss AK-ZTP2 controller.
Humidity Range 0% to 95% RH, non-condensing
Temperature Range -40°F to 122°F
Dimension 1-1/2 x 1 x 2-1/2"
Resistance 32°F = 1000 ohms
Material Plastic
Color Off White

Following are the Attached files for this product:

Zone Temperature Probe Installation Guide
