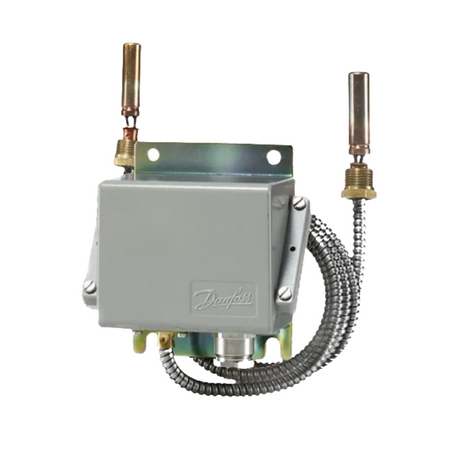

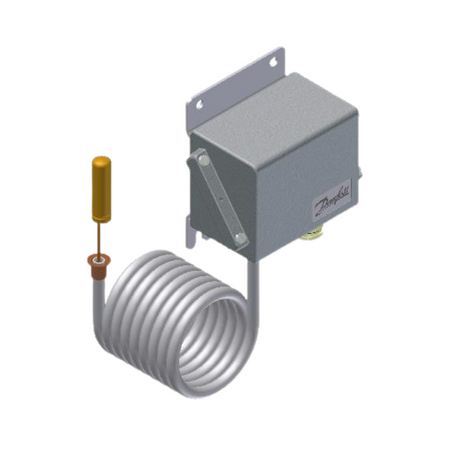

The Danfoss 060L315166 is a temperature controller with a CAS178 thermostat. The unit can be set from 20 to 80°C (68 to 176°F) temperature and its maximum sensor temperature is 130°C (266 °F). Also, it has a microswitch with SPDT single pole changeover.
This compact temperature controller is designed to have a high-level enclosure that makes it shock and vibration-resistant. The CAS thermostat is assembled with a 3 mm base steel plate to withstand shocks.
The 060L315166 is suitable for alarm or monitoring systems in factories, compressors, diesel plants, power stations, and onboard ships. The CAS series completed most requirements for outdoor and indoor applications.
Compatible Sensor for 060L315166:
| BRASS | STAINLESS STEEL | ||||
| Model | Sensor Length | Thread Size | Model | Sensor Length | Thread Size |
| 060L326566 | 65mm | 1/2 npt | 060L326766 | 75mm | G 1/2A |
| 060L326466 | 75mm | G 1/2A | 060L326866 | 110mm | G 1/2A |
| 060L326266 | 75mm | G 3/4A | 060L327066 | 110mm | 1/2 npt |
| 060L328166 | 75mm | 75 G 1/2A (ISO 228/1) | 060L326966 | 110mm | G 1/2A |
| 060L328066 | 110mm | 1/2 npt | |||
| 060L327166 | 110mm | G 1/2A | |||
| 060L340666 | 110mm | G 1/2A (ISO 228/1) | |||
| 060L340366 | 110mm | G 3/4A (ISO 228/1) | |||
| 060L326366 | 160mm | G 1/2A | |||
| Enclosure Rating IP | IP67 |
|---|---|
| Capillary Tube Length | 2000mm |
| Sensor Type | Remote Bulb |
| Contact Function | SPDT |
| Reset Function | Automatic |
| Thermostat Type | CAS178 |
| Temperature Range | 20 - 80°C |
| Maximum Sensor Temperature | 130°C (266 °F) |
| Temperature Differential Range | 2 K |
