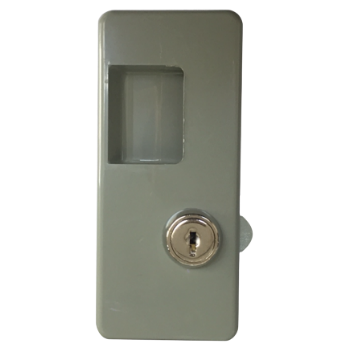

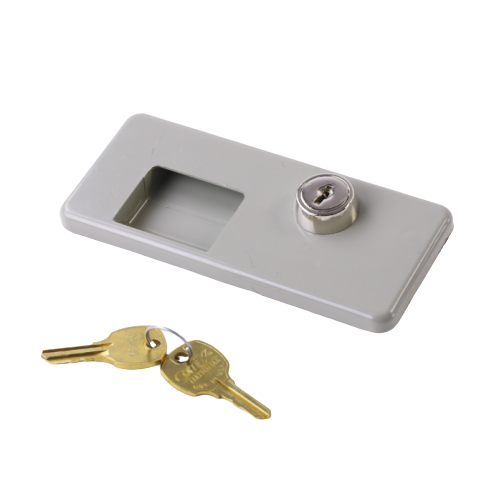

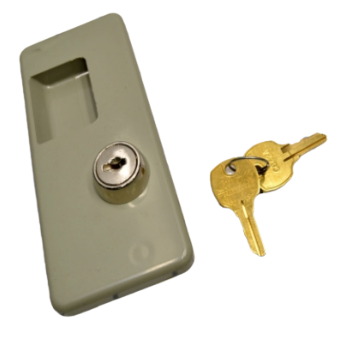

Cutler Hammer (Eaton) 3457B16G01 Trim Lock is used on vintage Westinghouse panel boards, lighting and small panels as standard.

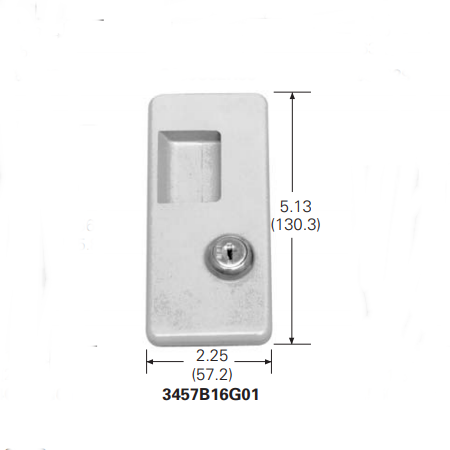

| Model No. | A | B |
| 3457B16G01 | 2.25 in. (57.2 mm) | 5.13 in. (130.3 mm) |
| Lock Dimension: | 2.25 in. (57.2 mm) x 5.13 in. (130.3 mm) |
|---|---|
| Mounting screw holes at: | 4.45" (113 mm) on center |
| Used For: | PRL1, 2, 3 and PRL1a, 2a, 3a Series Panels |
