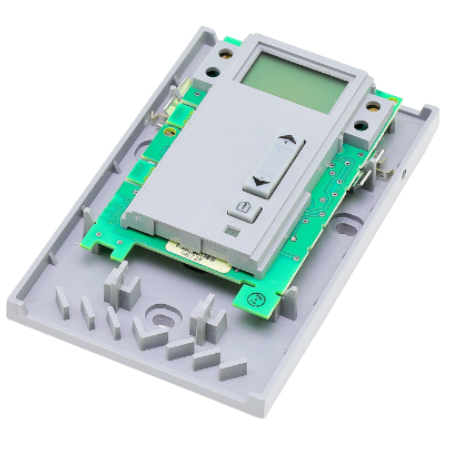

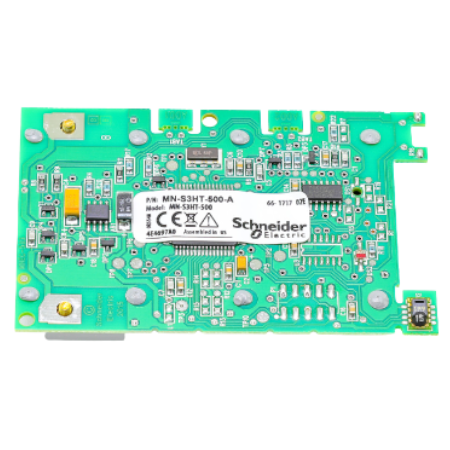

Barber Colman (Schneider Electric) MN-S3HT-500 Temperature & Humidity Sensor with LCD Display (No Cover)

Barber Colman (Schneider Electric) MN-S3HT-500 Temperature & Humidity Sensor with LCD Display (No Cover)
Images for general purposes only. Actual may be different than depicted.

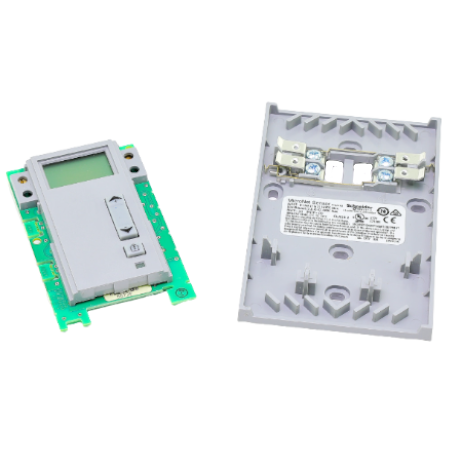

Barber Colman (Schneider Electric) MN-S3HT-500 Temperature & Humidity Sensor with LCD Display (No Cover) Barber Colman (Schneider Electric) MN-S3HT-500 Temperature & Humidity Sensor with LCD Display (No Cover) Barber Colman (Schneider Electric) MN-S3HT-500 Temperature & Humidity Sensor for TAC I/A Series MicroNet Controller

Barber Colman (Schneider Electric) MN-S3HT-500 Temperature & Humidity Sensor with LCD Display (No Cover)

SKU: MN-S3HT-500
Rating:
Quantity Price Stock
3
Usually Ships 1 - 2 Weeks
$960.44     /ea
3
0
$0.00
0
$0.00
0
MN-S3HT-500
The MN-S3HT-500 is a temperature and humidity sensor that features a large easy-to-read digital LCD display.  It has a 32 to 122 °F (0 to 50 °C) temperature sensor range and a 5 to 95% non-condensing humidity sensor range.  CE-marked, UL-listed, and CSA-certified.

The temperature and humidity sensor is suitable for TAC I/A Series MicroNet controller applications.  It is designed with three buttons that provide the function for setpoint adjustment and override. The DCQC-150-SE Micronet sensor cover accessory is also available.

The MN-S3HT-500 is easy to install and can be mounted into a direct-wall, 2 x 4 electrical box, 1/4 DIN electrical box, or surface box.
System Mode Heat/Cool/Off/Auto
Hysteresis ±1.2% RH maximum
Humidity Sensor Range 5 to 95% RH, non-condensing
Temperature Sensor Range 32 to 122 °F (0 to 50 °C)
Fan Modes Off/On/Speed (Low, Medium, High)/Auto
Enclosure Rating NEMA-1
Approvals CE-marked, UL-listed, and CSA-certified
Mounting Direct-Wall, 2 x 4 Electrical Box, 1/4 DIN Electrical Box, or Surface Box
Temperature Sensor Type Precision Thermistor
Humidity Sensor Element Thermoset Polymer Capacitive Sensor

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
Is this temperature and humidity plug and play?
Asked on Apr 03, 2023 by Brad from Florida
1 Answers

Have an answer? Click Here

A:
The Barber Colman (Schneider Electric) MN-S3HT-500 Temperature & Humidity Sensor with LCD Display is for use with I/A Series MicroNet Controllers. We highly recommend reviewing the product literature prior to purchasing the sensor.
Replied on Apr 03, 2023 by Brian from Industrial Stores
