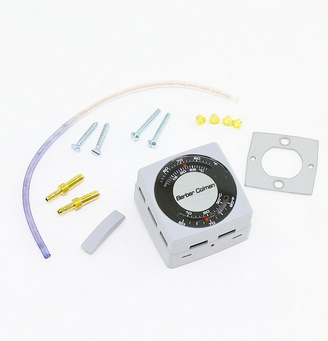

Barber Colman (Schneider Electric) Pneumatic Room Thermostat

The 2212 Series Pneumatic Room Thermostats are designed for proportional control of pneumatic devices and actuators in environmental control systems. These two-pipe thermostats incorporate a highly sensitive bimetal thermostatic element and a pilot operated relay with pneumatic feedback for accuracy and stability over the entire operating range.

These thermostats have a serrated thumb wheel for setpoint adjustment. Models are also available with preassembled internal dial stops. Thermostat covers are available in various styles to meet particular requirements. Cover options include models with a setpoint scale and a thermometer, a setpoint scale only, a thermometer only, or blank. An external setpoint
adjustment cover is available on some models, or can be field-installed on covers where desired.

Features:

• Factory-calibrated, stainless steel ball-in-seat provides pneumatic feedback for stable, linear operation.
• Easy-to-use throttling range adjustment and recalibration.
• Adjustable (patented) bimetal shows actual throttling range in both °F and °C. Adjustable 2 to 12 °F (1 to 6.7 °C).
• Leak-proof, self-closing branch gauge tap.
