Automation Components Inc A/CP-BP 10 Kohm 1 Bullet Probe Tempsen

Automation Components Inc A/CP-BP 10 Kohm 1 Bullet Probe Tempsen
Images for general purposes only. Actual may be different than depicted.
Automation Components Inc A/CP-BP 10 Kohm 1 Bullet Probe Tempsen

Automation Components Inc A/CP-BP 10 Kohm 1 Bullet Probe Tempsen

SKU: A/CP-BP
In Stock 1
Rating:
$11.77 /ea
0
$0.00
0
$0.00
0

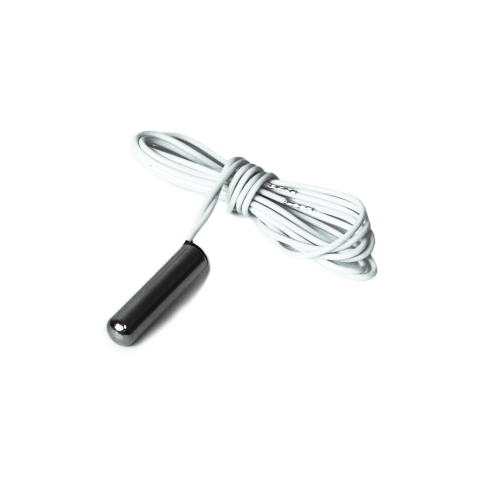

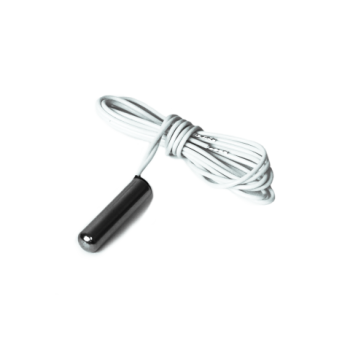

The ACI Thermistor Bullet Probe Series features a one inch stainless steel probe with two, 24 inch 22 AWG Etched Teon colored lead wires to dierentiate the dierent NTC sensor types.

The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the eects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. The bullet style sensor is designed to monitor air temperatures and should not be fully submerged in water. This series can be ordered with dierent wire options and NIST certicates.

Applications:

• Roof Top Units
• Air Handlers
• Discharge Air/Supply/Return/Mixed Air Duct
• Temperature
• Remote Temperature Sensing
Sensor Type Thermistor
Probe Material 304 Stainless Steel
Operating Temperature Range -40 to 150ºC (-40 to 302ºF)
Operating Humidity Range 10 to 95% RH, non-condensing
Agency Approvals CE, RoHS2, WEEE

Following are the Attached files for this product:

ACI Thermistor Bullet Probe Spec Sheet
