Aaon ASM01820 E-BUS Digital Room Temperature & Humidity Sensor with LCD Display

Aaon ASM01820 E-BUS Digital Room Temperature & Humidity Sensor with LCD Display
Images for general purposes only. Actual may be different than depicted.

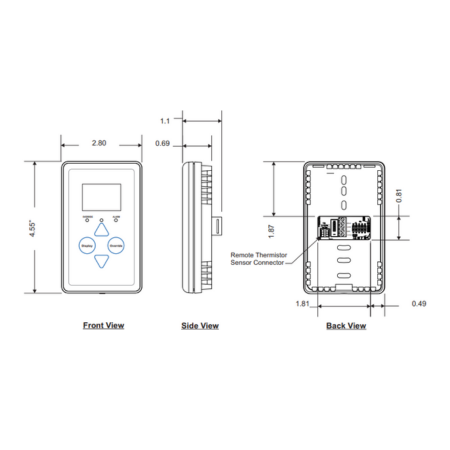

Aaon ASM01820 E-BUS Digital Room Temperature & Humidity Sensor with LCD Display Aaon ASM01820 E-BUS Digital Room Temperature & Humidity Sensor Aaon ASM01820 E-BUS Digital Room Temperature & Humidity Sensor Dimensions

Aaon ASM01820 E-BUS Digital Room Temperature & Humidity Sensor with LCD Display

SKU: ASM01820
UNSPSC: 2613170
Rating:
Quantity Price Stock
16
Usually Ships 2 - 4 Weeks
$428.58     /ea
16

The ASM01820 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Aaon OE217-03 Digital Room Temperature Sensor LCD Display OE217-03

Brand Aaon
Aaon OE217-03 Digital Room Temperature Sensor LCD Display
0
$0.00
0
$0.00
0
ASM01820

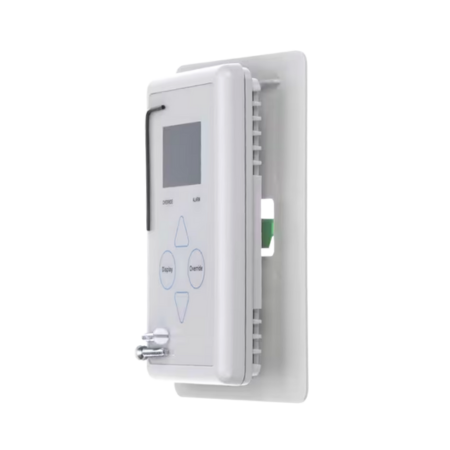

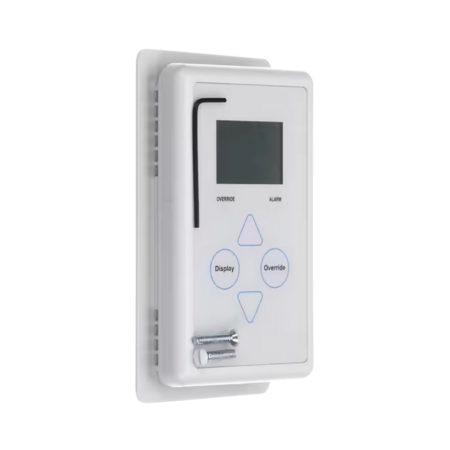

The Aaon ASM01820 is an E-BUS digital room temperature and humidity sensor, designed for precise monitoring and control.  It comes complete with a cover plate, back plate, optional mounting plate, and two mounting screws for easy installation.

Features

  • Easy-to-read LCD screen with LED backlight
  • Shows current room temperature, humidity, and setpoint
  • LED to indicate schedule override, button press, and alarms
  • Graphic to indicate system mode and operation
  • Override button to force system into occupied mode
  • Push buttons to adjust temperature setpoint

The ASM01820 is a direct replacement for the OE217-03 and is compatible with the VCCX2, VCB-X, and a range of other AAON unit controllers.  For optimal performance, it should be wall-mounted in a location free from drafts and direct sunlight exposure.
Connection E-BUS
Accuracy +/-0.8°F
Sensor Reading Range 40 to 120°F
Ambient Temperature Limits -40 to 180°F
Display Graphical LCD with LED Backlight
Sensor Element Digital Sensing Device
Mounting Wall Mount
Application Unit Controller
