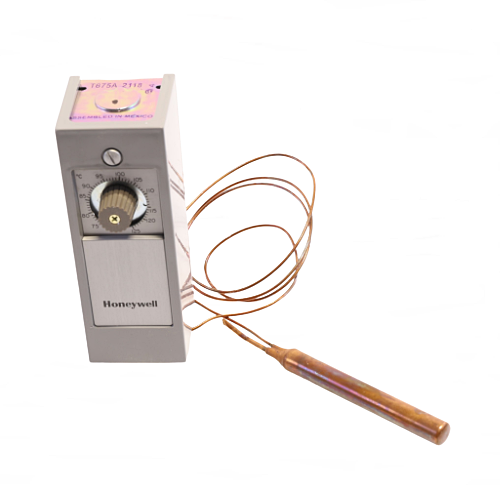

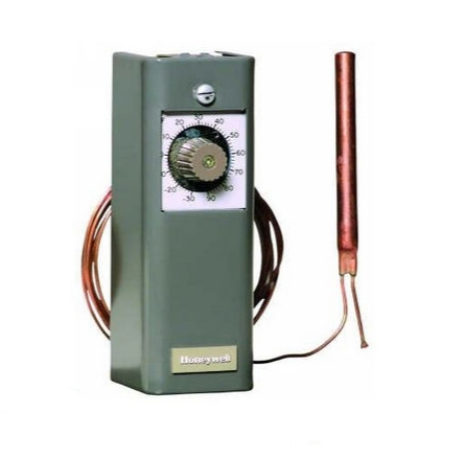

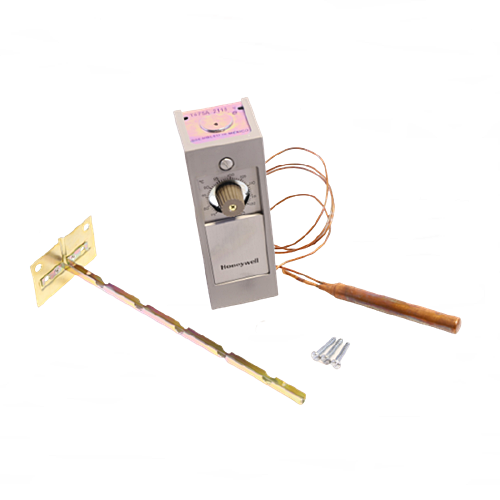

Honeywell T675A2118 Remote Bulb Thermostat Temperature Controller

Honeywell T675A2118 Remote Bulb Thermostat Temperature Controller
Images for general purposes only. Actual may be different than depicted.
Honeywell T675A2118 Remote Bulb Thermostat Temperature Controller Honeywell T675A2118 Remote Bulb Controller 75-125 degrees Setpoint Honeywell  T675A2118 Air or Liquid Temperature Regulator

Honeywell T675A2118 Remote Bulb Thermostat Temperature Controller

SKU: T675A2118
Rating:
* This Product is Now Obsolete
No Replacement Available
0
0
0
0
0
T675A2118
The Honeywell T675A2118 Remote Bulb Thermostat Temperature Controller does regulate air or liquids temperature in boilers, ducts, tanks, and pipes.  It can be mounted in any position and the capillary is 5" in length.  Operates at a power supply of 120 VAC or 240/277 VAC.  The temperature controller can be set at 75 to 125 Degrees Celsius.

Features

•Suitable for applications requiring temperature control of air or liquids where controller must be placed outside the sensing area.
•Typical uses include control of dampers and valves in heating, cooling and heating-cooling systems.
•Fast response models (available for use in return air duct) operate approximately four times faster than standard models.
•Controller can be mounted in any position.
•Ambient temperature compensation provides good temperature control.
•Refer to T775 Electronic Remote Temperature Controller where more exact control is required and/or remote controller location is preferred.
•T675A models with fixed differential have an electrical rating of 125 VA at 120/208/240 and 277 Vac.
• T675B models have 125 VA pilot duty up to 277 Vac.
•T678 models have a maximum connected load of 2000 VA.
Maximum Bulb Pressure 50 PSI (344.7 kPa) for Direct Immersion
No. of Throws Double
No. of Poles Single
Differential Temperature 1.7-5.6°C
Voltage 120Vac or 240/277Vac
Temperature Setpoint Range 75-125°C
Freeze-up Setpoint Temperature 38°F (3.3°C) plus switch differential
Sensing Element Copper Bulb
Capillary Length 5"
Hertz 50/60 HZ
